Airless Gas Cylinder Shot Blasting Machine
The Airless Gas Cylinder Shot Blasting Machine manufactured by Finishree Equipment’s Pvt. Ltd. is an advanced, high-productivity surface treatment solution developed specifically for external cleaning, descaling, old paint stripping, and surface profiling of LPG cylinders, CNG cylinders, high-pressure industrial gas bottles (oxygen, nitrogen, hydrogen, argon), and fire extinguisher shells.
Equipped with high-efficiency airless blast wheels (turbines) firing high-grade cast steel shots and grit, the machine achieves comprehensive 360-degree surface coverage across the cylindrical body, top collar/dome, neck shoulder, and bottom foot ring without any manual repositioning. It delivers consistent surface cleanliness to SA 2.5 and SA 3.0 (ISO 8501-1) standards, creating an ideal anchor profile for electrostatic powder coating, zinc thermal spraying, or industrial liquid painting.
Working Principle & Conveying Mechanisms
Finishree manufactures two versatile automated conveying configurations tailored to production volumes and plant layouts:

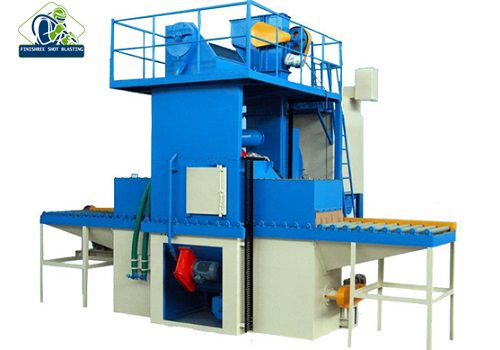

1. Continuous Skew Roller / Diabolo Roller Conveyor Type:
Cylinders are fed onto motorized conical diabolo rollers that impart continuous
linear forward travel combined with axial rotation. As the rotating cylinders
pass through the blast chamber, strategically angled blast turbines target the
cylinder body, neck, and bottom rim, ensuring high-speed continuous output (up
to 120–180 cylinders/hour).
2. Overhead Continuous / Indexing Spinner Hanger Type:
Cylinders are suspended on dedicated hooks from a monorail or overhead conveyor
loop. Inside the blast enclosure, each hanger rotates independently at
controlled RPMs directly in front of the high-velocity blast streams, ensuring
thorough cleaning of complex neck collars, valve shrouds, and bottom foot rings.
3. Direct Blast Wheel Geometry & Armor Enclosure:
Heavy-duty bi-directional blast wheels with high-chrome alloy blades throw steel
shots/grit at 75–80 m/s. The blast cabinet is fortified with replaceable 11–14%
Manganese (Mn13) cast alloy plates. Entry and exit vestibules are fitted with
multiple layers of durable rubber curtains to eliminate shot leakage.
4. Automatic Media Recovery & Air-Wash Separation:
Spent abrasive, dislodged rust, and pulverized old paint fall through the floor
hopper into a longitudinal screw conveyor, followed by a vertical bucket
elevator and a high-efficiency rotary screen with an Air-Wash Separator. Dust
and fine broken media are segregated into the collector, while good steel shots
are recycled into the blast storage hopper.
5. Eco-Friendly Pulse-Jet Dust Extraction:
A continuous reverse pulse-jet dust collector maintains negative air pressure
across the blast cabinet, keeping dust emission levels below 10 mg/Nm³ in
compliance with environmental and pollution control norms.
Key Machine Features
- High Production Throughput: Automated handling achieves cleaning rates from 60 up to 180 cylinders per hour with minimal manual labor.
- Complete 360-Degree Coverage: Uniform cleaning of cylinder body, dome, neck, handle collar, and base ring.
- Versatile Cylinder Compatibility: Handles domestic LPG (14.2 kg, 19 kg), commercial gas bottles, automotive CNG cylinders (Type 1, 2, 3, 4), and jumbo industrial gas tubes.
- Superior Paint Adhesion: Generates a uniform anchor profile (35–70 microns) essential for long-term corrosion protection and peel resistance.
- Heavy-Duty Construction: Built with thick structural steel and lined with Mn13 manganese armor to ensure decades of reliable industrial service.
- Centralized PLC Safety Console: Intuitive touch HMI, digital speed indicators, motor overload protectors, and safety interlocks.
Technical Specifications Sheet
Finishree manufactures standard and custom-engineered gas cylinder shot blasting systems:
| Parameter / Specification | Model FSB-GC-250 | Model FSB-GC-350 | Model FSB-GC-450 | Model FSB-GC-600 |
|---|---|---|---|---|
| Applicable Cylinders | Small LPG & Fire Extinguishers | Domestic / Commercial LPG & CNG | Commercial CNG & Industrial Gas | Jumbo CNG & High-Pressure Tubes |
| Cylinder Diameter (OD) | Ø150 – 250 mm | Ø200 – 350 mm | Ø250 – 450 mm | Ø300 – 600 mm |
| Cylinder Length Capacity | 400 – 1200 mm | 500 – 1800 mm | 600 – 2200 mm | 800 – 2500 mm |
| Hourly Production Capacity | 60 – 120 cylinders/hr | 80 – 180 cylinders/hr | 60 – 150 cylinders/hr | 40 – 100 cylinders/hr |
| Conveyor Configuration | Skew Roller / Spinner Hanger | Skew Roller / Continuous Rollers | Skew Roller / Overhead Hanger | Heavy-Duty Continuous Rollers |
| No. of Blast Wheels | 2 Nos. | 2 / 4 Nos. | 4 Nos. | 4 / 6 Nos. |
| Power per Blast Wheel | 7.5 HP (5.5 kW) | 10 HP (7.5 kW) | 15 HP (11 kW) | 20 HP (15 kW) |
| Surface Cleanliness Level | SA 2.5 to SA 3.0 | SA 2.5 to SA 3.0 | SA 2.5 to SA 3.0 | SA 2.5 to SA 3.0 |
| Anchor Profile Range | 35 – 65 Microns | 35 – 70 Microns | 40 – 75 Microns | 45 – 85 Microns |
| Dust Collector Air Flow | 3,000 CFM | 4,500 CFM | 7,000 CFM | 10,000 CFM |
| Total Connected Power | 25 kW (34 HP) | 45 kW (60 HP) | 75 kW (100 HP) | 110 kW (148 HP) |
Airless Gas Cylinder Shot Blasting Machine - Product Gallery
Industrial Applications
- LPG Cylinder Manufacturing & Bottling Plants: Mill scale and weld slag removal on newly fabricated domestic (14.2 kg) and commercial (19 kg, 35 kg, 47.5 kg) cylinder bodies before painting or zinc metallizing.
- Cylinder Refurbishment & Re-Testing Depots: Stripping old paint, heavy surface oxidation, and road grime from returned cylinders during statutory 5-year periodic hydrostatic re-qualification.
- Automotive CNG Vehicle Cylinders: Surface etching and cleaning of Type 1 all-steel and Type 2/3/4 hoop/full-wrapped composite CNG cylinders.
- Industrial Gas Cylinders: High-capacity surface descaling for oxygen, nitrogen, hydrogen, carbon dioxide, argon, helium, and medical gas cylinders.
- Fire Safety Equipment: Automated paint stripping and preparation for dry chemical and CO2 fire extinguisher bodies.
